No vehicle has been selected. This part may not be compatible with your vehicle.

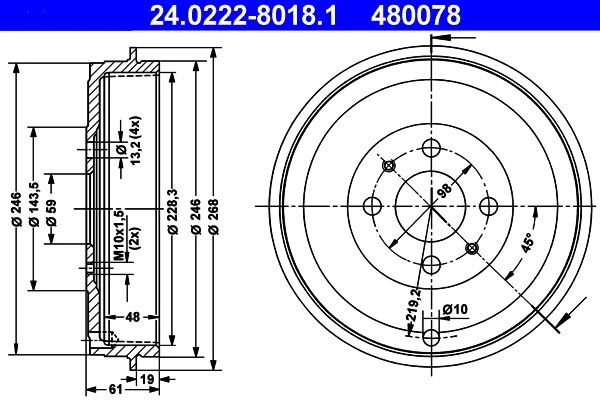

Properties
| Num. of holes | 4 |
| Inner brake drum height (mm) | 48.0 |
| Outer brake drum diameter (mm) | 268.0 |
| Max. brake drum reboring dimension (mm) | 230.0 |
| Holder Ø (mm) | 59.0 |
| Inner brake drum diameter (mm) | 228 |
| Appr. stamp | e1 90r-02d0324/1950 |
| Bolt hole circle Ø (mm) | 98.0 |
| Bore Ø (mm) | 13.2 |
| Total brake drum height (mm) | 61.0 |
Accepted Payment Options
Shipping Options
Express delivery
Express delivery
Express delivery
Express delivery
| Manufacturer | Productnumber |
| FIAT | 51816526 |
| FIAT | 52015299 |
| FIAT | 60810025 |
| FIAT | 60814839 |
| FIAT | 7569600 |
| FIAT | 7769850 |
| PEUGEOT | 16 089 454 80 , 1608945480 |
| PEUGEOT | 16 173 290 80 , 1617329080 |
| PEUGEOT | 4247 55 , 424755 |
| PEUGEOT | 4247 58 , 424758 |
| CITROËN | 16 089 454 80 , 1608945480 |
| CITROËN | 16 173 290 80 , 1617329080 |
| CITROËN | 4247 55 , 424755 |
| CITROËN | 4247 58 , 424758 |
| Usage numbers |
| 480078 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 ALFA ROMEO |
||||||||
 CITROËN |
||||||||
 FIAT |
||||||||
 PEUGEOT |
